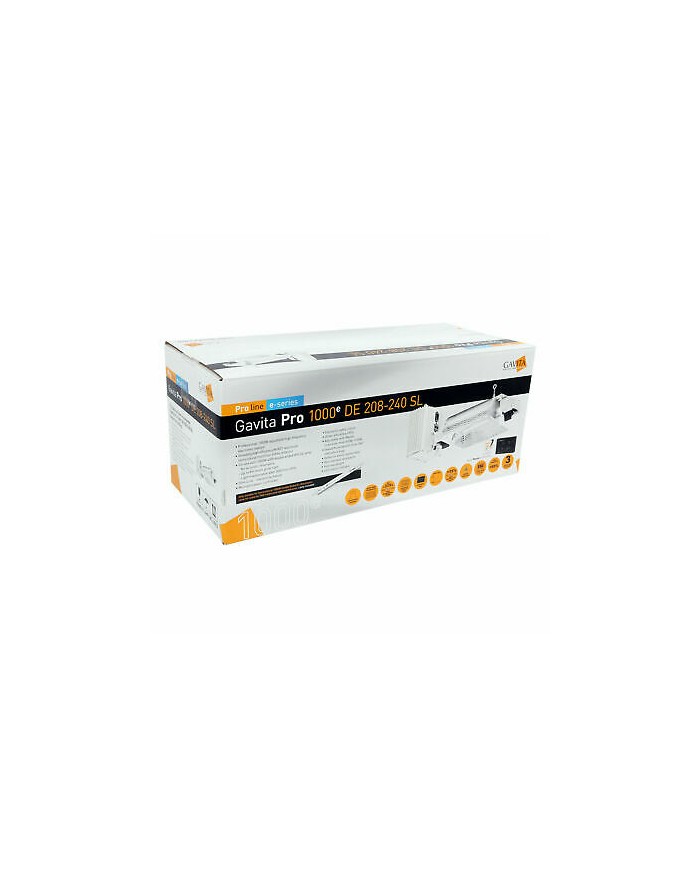

Gavita Pro 1000 DE 208-240 SL

£450.00
Tax included
  • Slim-line ballast, only 9.7 inches (19,4 cm) high
  • Highest light output and maintenance over time
  • Highly efficient passive cooling of ballast for longer electronics lifetime
  • Sealed housings with Gore-Tex® ventilation plugs

SKU: GP1000DESLIM
Description

The Gavita Slim Line series is part of the 'professional' line of fixtures. Designed especially for grow rooms, our professional fixtures suit flexible and fixed installations. They are compact and come with a Repeater Bus interface (no manual control). For 208V three-phase or 240V. The reduced height make this the fixture of choice for low rooms.

  • Slim-line ballast, only 9.7 inches (19,4 cm) high
  • Highest light output and maintenance over time
  • Highly efficient passive cooling of ballast for longer electronics lifetime
  • Sealed housings with Gore-Tex® ventilation plugs
  • External control with Repeater Bus interface
  • Mounting brackets for Unistrut/c-profiles available

Slim Line

When lighting plants, the distance to crop a crucial factor. The right distance gives you the desired light levels and optimal uniformity. In rooms with a low ceiling or retrofits every inch matters. By optimizing the fixture for professional grows, we were able to create a ballast measuring only 9.7 inches high without compromising quality or cooling efficacy.

Repeater Bus configuration

Gavita developed the Repeater Bus interface for fixed installations in-professional environments. The Gavita difference is the double-port connector on the ballast. The active interface repeats the input signal to the output. This setup lets you directly daisy chain 100 fixtures per string and five strings per controller port to connect a maximum of 500 fixtures per controller port.

Replaceable reflector

Our bracket is designed to be able to change you reflector quickly. Miro aluminium can not easily be cleaned, and when you clean it, it will never be as good as a new reflector. We recommend to change reflectors every year in a “dirty” environment (dust, foggers, sprays) or every two years in a clean environment.

No moving parts, optimal thermal management

Our ballasts are completely sealed and passively cooled through the extrusion aluminium ballast housing. Our housings provide optimized thermal management, which keeps the electronics much cooler than in die-cast housings. Good thermal management is extremely important for the lifetime and reliability of the electronics.

High frequency electronic ballast

There is no such thing as a universal ballast. You will get the optimal output when you match a lamp and ballast which are designed for each other. Our ballasts are designed to power our horticultural double ended lamps at exactly the right high frequency and power for optimal and stable output, and a long light maintenance. Our ballasts are only suitable for high frequency HPS lamps as specified in the product manual.

Double ended lamp

Our Double ended HPS lamps are the most efficient HPS lamps available. Double ended lamps have the advantage that they are always in the focal point of the reflector, there is no frame wire in the lamp which results in less light interception, and the lamp is very small in diameter which prevents reflected light to be intercepted by the lamp in the reflector.

Soft start

Unlike magnetic ballasts our electronic ballasts never use more power than their specified power during the start-up sequence. Lamps reach their full power much quicker though than with a magnetic ballast.

Specifications

  • Input current at 100% - 4.5 Amps
  • Input current at 115% - 5.2 Amps
  • Input power at 100% - 1050 Watt
  • Input power at 115% - 1236 Watt
  • Light source - Gavita Pro Plus 1000 W EL DE HPS E40
Product Details
Gavita
GP1000DESLIM
