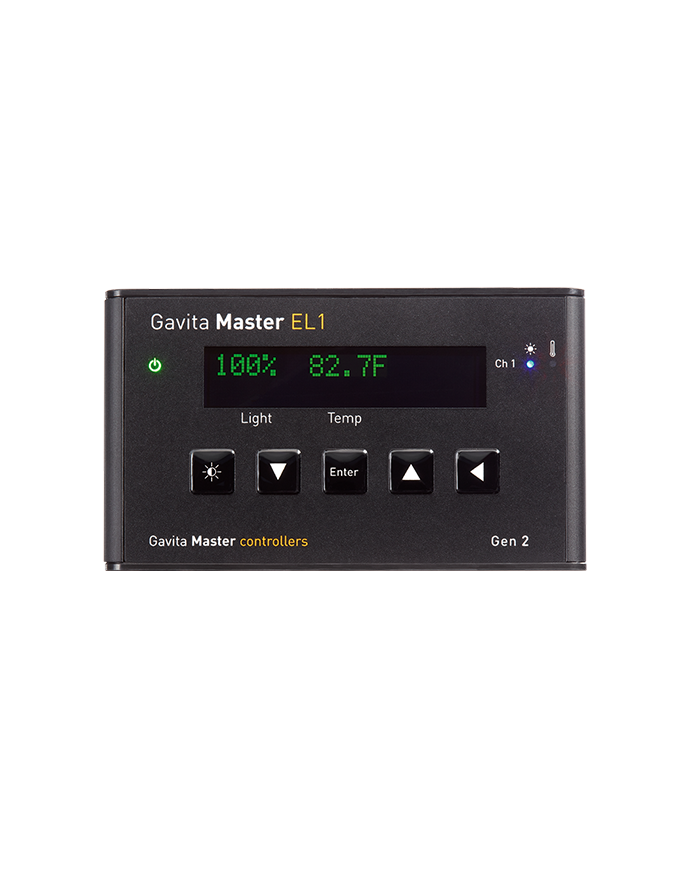

Gavita Master Controller EL1 & EL2 – Gen 2
£340.00
Tax included
- Non-volatile memory
- Event logging
- Independent sunrise and sunset settings
- Independent light cycles on the EL2
Master controller EL1 & EL2 – Gen 2
Lighting control at your fingertips! The Master controller EL1 and EL2 Gen2 are our entry-level systems for centrally controlling large rooms with e-series fixtures. The second generation of Master controllers features improved and expanded functionality that raises the bar:
- Non-volatile memory
- Event logging
- Independent sunrise and sunset settings
- Independent light cycles on the EL2
Specifications
| EL1 | EL2 | |
| Lighting control channels | 1 | 2 |
| Lighting control | 50-115% | 50-115% |
| Max Repeater Bus fixtures | 500 | 1000 |
| Max Single Bus fixtures | 40* | 80* |
| Auto-dim/auto-shutdown | • | • |
| Sunrise/sunset | • | • |
| Temperature calibration | • | • |
| Inverse channels (flip/flop) | • | |
| ECM interface | • | |
| Alarm contacts | 2, nc/no | |
| EC Fan control outputs | 0 | 0 |
| Fan control range | • | • |
| Maximum number of fans | • | • |
| External Fan control Module (EFM1) | • | • |
| Fan Balancer (FB1) | • | • |
| External Contactor Module (ECM1) | • | • |
| B200 booster (max. 3 per port) | 3 | 6 |
| *without booster modules | *without booster modules |
