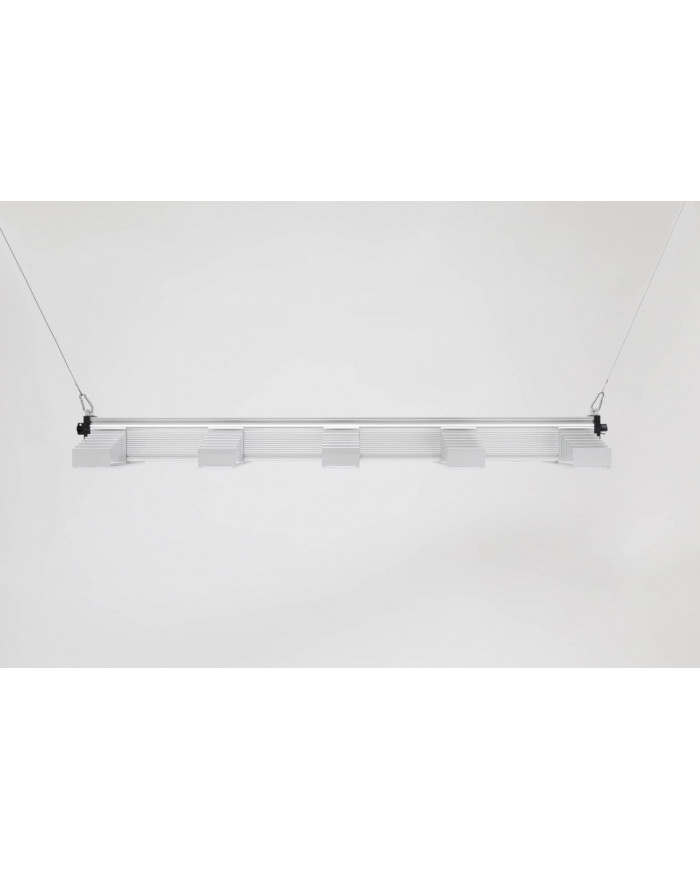

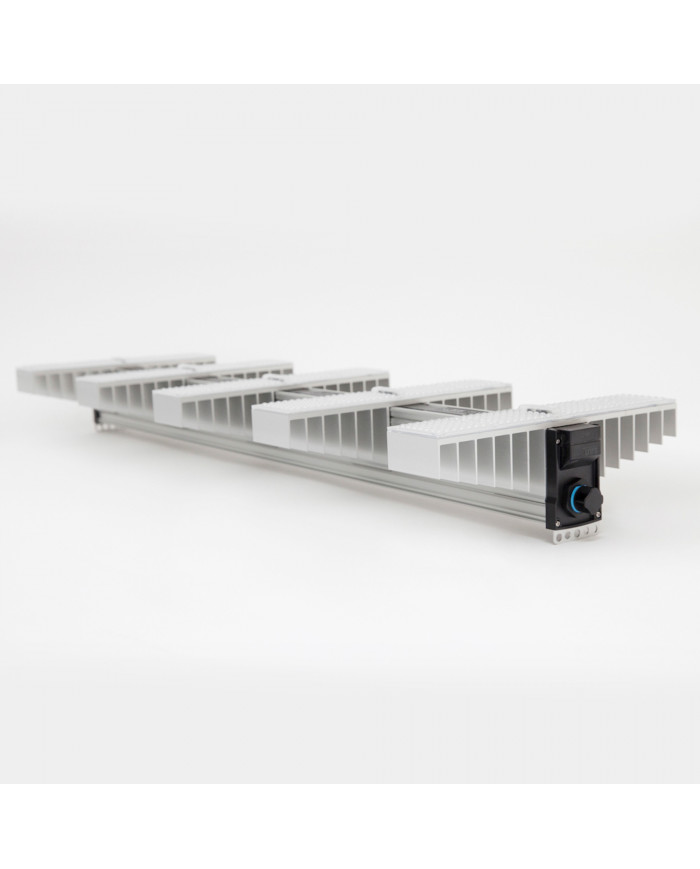

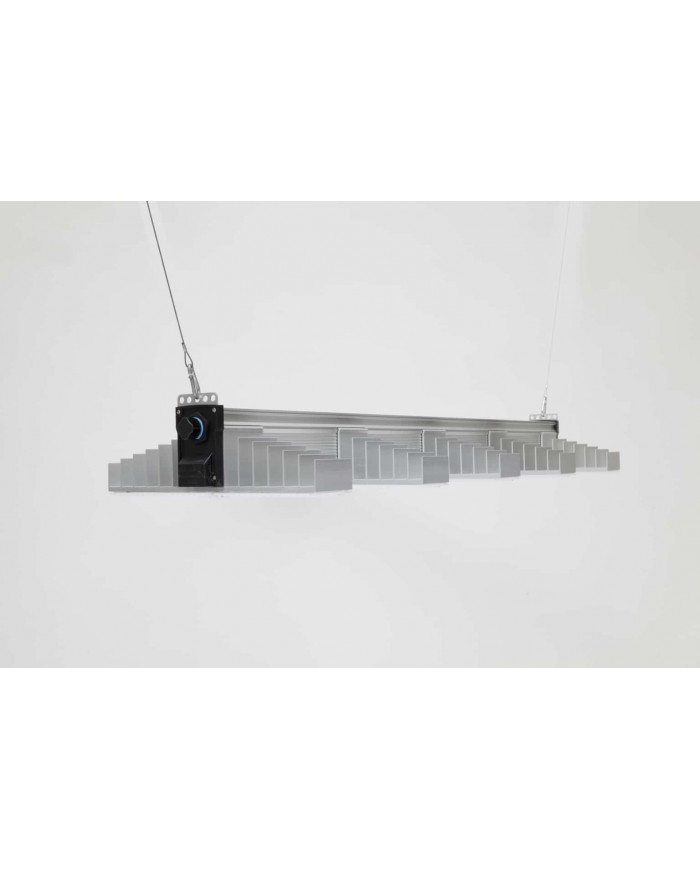

SANlight EVO 5-120 - 320W

SANlight EVO 5-120 - 320W

Highly efficient LED grow light system for indoor growing

With the EVO series, we present you the top of the evolution chain in Led luminaires for the cultivation of plants. All experience from in-house and external research has been combined with the latest technology.

As a user, you benefit from maximum flexibility, best system efficiency and sustainable lifetime with the EVO series. No matter if you want to light a small area, a professional indoor production or a whole greenhouse. With the EVO series, we can offer you the right grow light for every application.

The EVO 5-120 was developed for use in projects, but can also be used for extreme tent applications. 2 pieces of EVO 5-120 in a 1.2 x 1.2m tent provide Ø PPFDe values of 1,100µmol/m2/s. With this set up, the use of the dimmer is mandatory in any case. Our studies have shown that even at these intensities it is still possible to work without CO2 supplementation. However, we strongly recommend CO2 gassing to optimise the result.

• Developed as a project luminaire for high rooms and open areas
• CO₂ supplementation and dimmer recommended for use in tents
• When used without additional CO₂ fumigation, utmost horticultural care is advised
• Recommendations for other tent or room sizes on request
• 320W at 870µmol/s
• Due to a wide variety of installation options, the various cables and other accessories are available separately and are not included

From an almost unmanageable selection of LEDs which are available on the market, we have selected only the best for you. For red and far-red LEDs, we have chosen, as in years past, the latest OSRAM High Power LEDs. For white LEDs we were convinced by the patented WICOP technology from Seoul Semiconductor. The LEDS with this technology are characterized by the renunciation of lead frames and silver by special robustness with best efficiency.

Each model of the EVO series is “ready-to-dim”. This means that the luminaire is compatible with the typical control systems used in greenhouse technology. Alternatively, you can retrofit the luminaire with magnetic dimmer or Bluetooth dimmer. Compared to rotary potentiometers, our solutions work wear-free and humidity and water cannot harm them.

In the EVO series, all connectors are made with high quality waterproof connectors, which have been established in commercial horticulture over the past decades. All accessories offered by us are designed for the harsh greenhouse environment. Thus, you can easily and safely configure your system, dim or connect to a “daisy-chain” according to your ideas.

Technical overview

Power consumption: 320

PPF*: 870

Weight: 5.9

Length (mm): 1018

Width (mm): 291

Height (mm): 116

Protection class: IP65

POWER CABLE COMES INCLUDED WITH THIS FIXTURE
